The mid-format water house, in four configurations from 4 to 8 slides. Suited to parks that want a substantial all-ages play structure without the footprint of a big water house - and offered with the same theme programme as the rest of the range.
4 to 8 slides, with footprints from 25 to 51 metres.
consistent slide lengths, flow rates and supervision positions across the range.
capacity scaled to the configuration chosen.
the same Southeast Asia, Caribbean, Arabian and marine theme options as the large format.

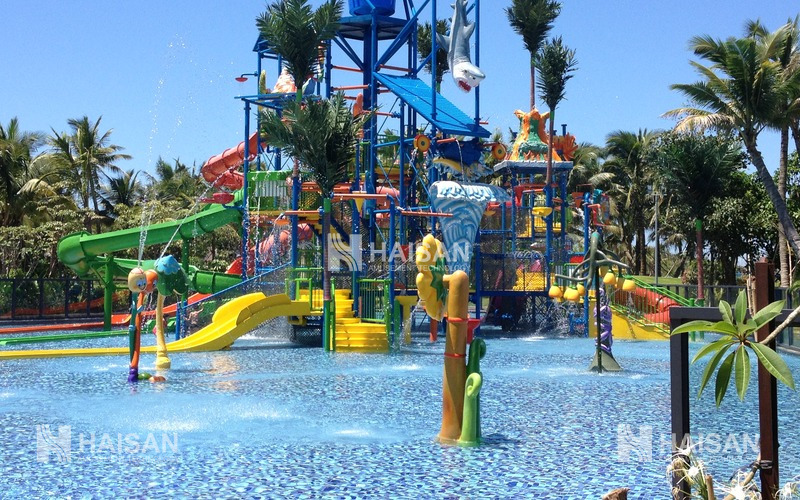

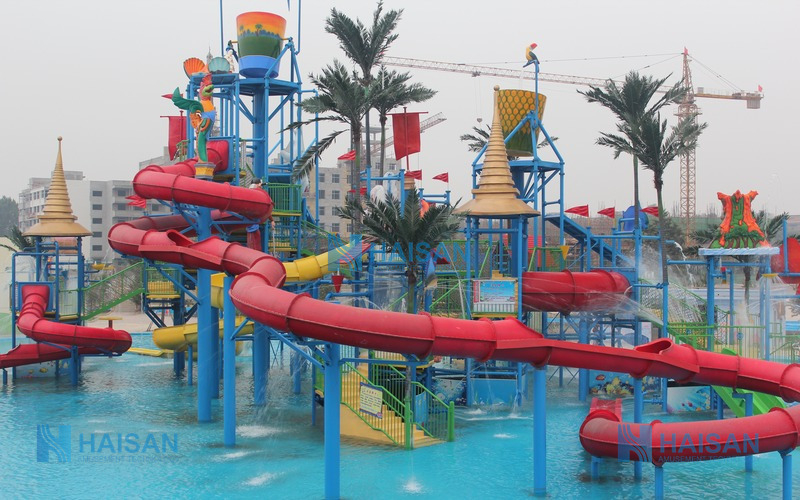

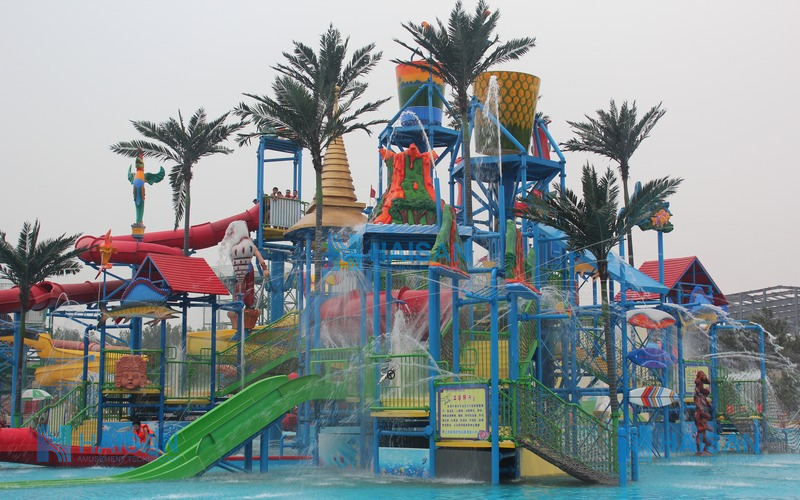

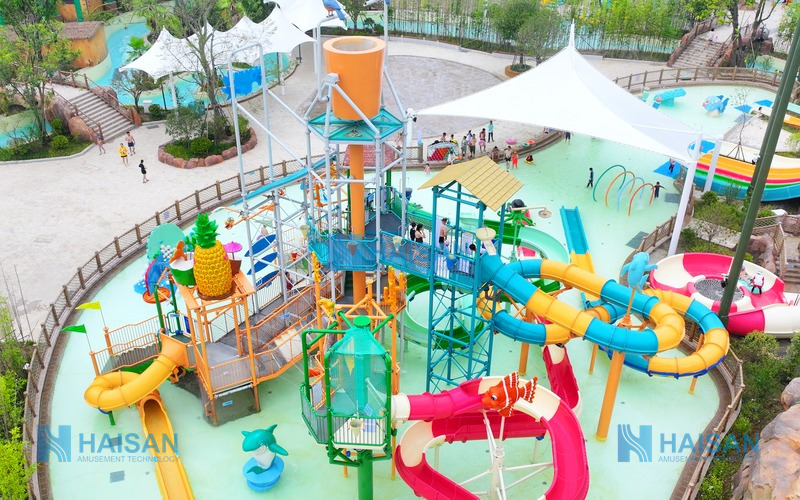

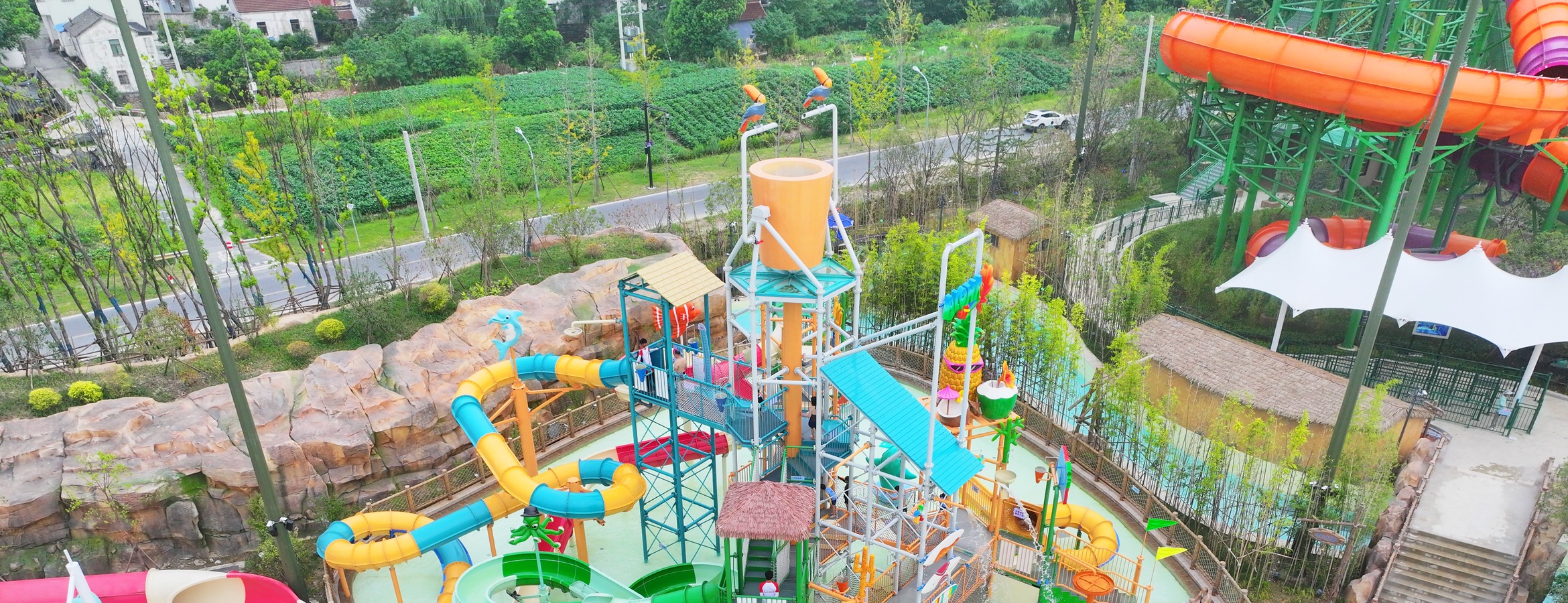

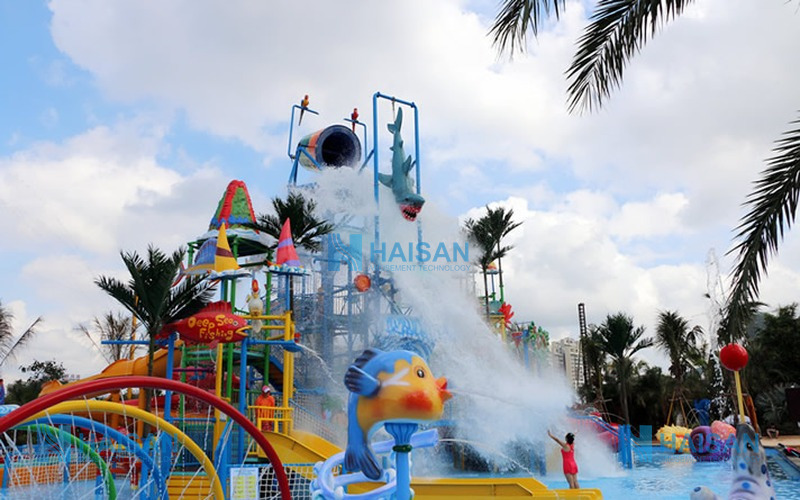

The Medium Water House is the flexible middle of Haisan's water house range. It preserves the defining characteristics of the format - a multi-level steel structure carrying a mix of slide types, with all-ages appeal and full theming - while allowing the park to size the structure to the site. Four standard configurations cover most requirements, and the same design logic scales in either direction.
The four reference configurations span a useful range. Medium 1 measures 51 by 28 by 15.6 metres and carries four spiral slides and three wave-type slides, seven slides in total, at 420 riders per hour. Medium 2 measures 31 by 28 by 16 metres with four spiral and four wave-type slides, eight slides, at 350 riders per hour. Medium 3 measures 28 by 25 by 16 metres with three spiral and four wave-type slides, seven slides, at 320 riders per hour. Medium 4 measures 25 by 20.5 by 15 metres with three spiral slides and one wide slide, four slides in total, at 200 riders per hour. All configurations use single-rider lanes, which keeps dispatch simple and supervision requirements manageable.
Like the large format, the Medium Water House is sold with a theme programme rather than a fixed appearance: diversified styles and theme designs are available, with Southeast Asia, Caribbean, One Thousand and One Nights and marine animal themes among the options. The 15 to 16 metre height range is the common factor across the four configurations, which means the same slide lengths, water flow rates and supervision positions apply across the range - a benefit for operators running more than one park.
Medium Water House combines a hot-dip galvanized steel framework with FRP slide flumes and themed decorative cladding. The structure is analysed for wind and live loads and is assembled from bolted modules so it can be shipped in containers and erected quickly on site. Decorative elements - roofs, water features, themed figures and colour schemes - are produced to order, allowing the same structural platform to be dressed in very different themes.
Medium Water House is designed and manufactured in accordance with GB 8408-2018 (Safety Code for Large Amusement Devices), GB/T 18164-2020, GB/T 18168-2017 (General Technical Conditions for Water Amusement Facilities) and TSG 71-2023 (Safety Technical Regulations for Large Amusement Devices). Haisan holds the manufacturing and installation licences required for large amusement devices, and every unit passes in-factory testing and on-site commissioning before handover.
Haisan supplies Medium Water House as part of a full-process package covering concept and layout design, structural calculation, manufacture, shipping, on-site installation, plumbing and electrical works, commissioning, operator training and long-term after-sales support. Because equipment is engineered in modules, delivery and installation can be phased to match the park's construction programme.
